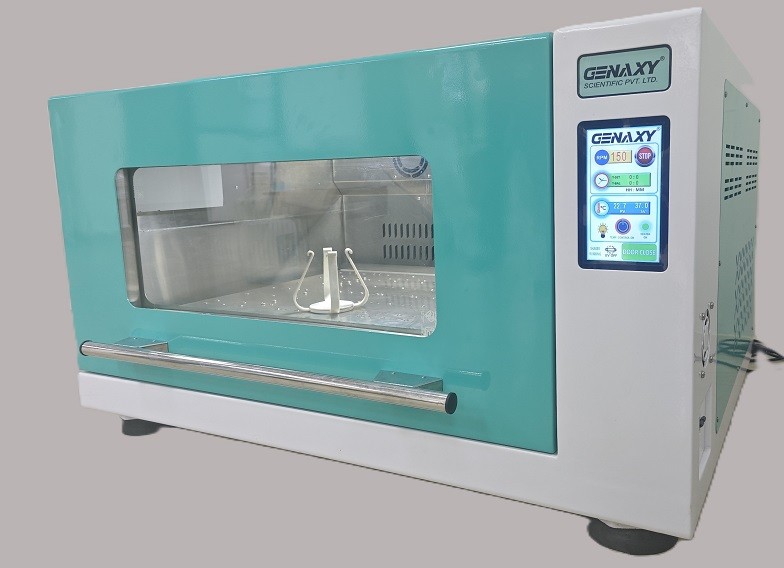

NEX-GEN Shaking Incubator

  • Stackable up to 3 unit.
  • Speed range from 0 to 300 RPM.
  • Temperature Range of 10 to 60 °C.
  • Chamber Capacity of 250 L.
  • Platform size of 800 x 550 mm.
  • Availability of clamps and sticky mats for flexibility of use.
  • ISO & CE Certified.
  • Touch Screen Control Panel

Overview

The GENAXY NEX-GEN series Refrigerated shaking incubators can be stacked up to three units high, providing laboratory professionals tripled culture capacity, while still only occupying the same “footprint” of a single shaker. All models feature an insulated, foldable door to save space unlike the conventional front opening that needs space while opening the door. Equipped with double-layer glass window for high visibility.

Easy operation using the switches for temperature and shaking on/off features, LED light indicators for heating and cooling temperature, easy touch pad for speed and temperature settings. Equipped with large LED display for displaying the real time temperature, speed and time.

Specifications

Model

GSI-250L GSI-250LH
Capacity 250 Liters
Control P.I.D Microprocessor
Control Mode Fix Value
Control Panel Touch Screen
Air Convection Forced
Shaking Mode Orbital
Volume/Compartment (L) 250L
Ambient Temperature (°C)  10 to 35
Shaking Speed (rpm) 0-300 (250 Recommended with 3 units)
Stroke (mm) Ø 25 mm.
Temperature Range (°C) Apr-60
Temperature Accuracy (°C) 0.5
Temperature Uniformity (°C) ±1°C @ 37°C
Timer 1 to 9999 min.
Inner Chamber Stainless Steel
Outer Chamber Stainless Steel
Tray (mm) (WxD) 800 x 550
Inner Dimensions 860x700x420 (mm) (W x D xH)
Exterior Dimensions 1320x1070x740 (mm) (W x D x H) 950 X 780 x 625 mm
Packing Dimensions 1420x1150x2060 (mm) (W x D x H)
Net/Gross Weight (kg) 150/ 200 Kg. 120/ 150 Kg.
Power (W) 1500W
Electricity 230V 50Hz
Approval CE, ISO
Security Over-temperature Protection, Compressor Overload Protection,

Video

Variations

Image Product Name Catalog No. Product Description Pack Size Quantity Action

Accessories

GSI-250L  250L Shaking Incubator with predrilled platform
G-Clamp-50ml  Clamp for 50ml Flask, with Spring Retainer
G-Clamp-100ml  Clamp for 100ml Flask, with Spring Retainer
G-Clamp-250ml  Clamp for 250ml Flask, with Spring Retainer
G-Clamp-500ml  Clamp for 500ml Flask, with Spring Retainer
G-Clamp-750ml  Clamp for 750ml Flask, with Spring Retainer
G-Clamp-1000ml  Clamp for 1000ml Flask, with Spring Retainer
G-Clamp-2000ml  Clamp for 2000ml Flask, with Spring Retainer
G-Clamp-96well  Clamp for 96 Well Plate
G-Sticky-Mat  20x20 cm sticky mats.
