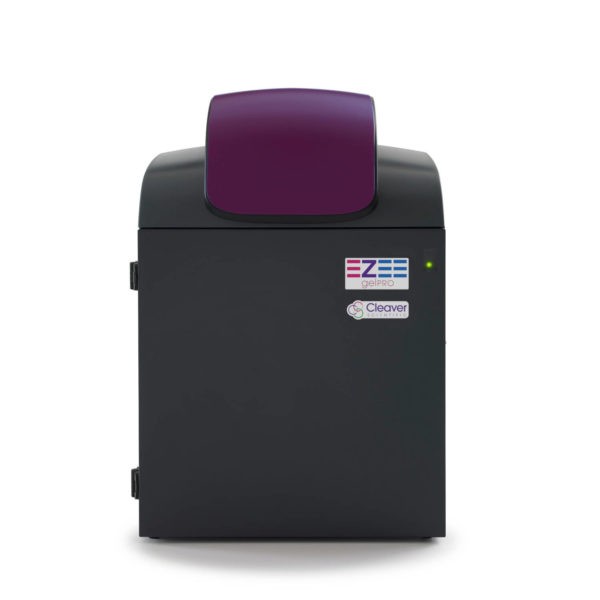

Cleaver GelPro - Advance Gel Doc System

Upgradeable to chemiluminescence

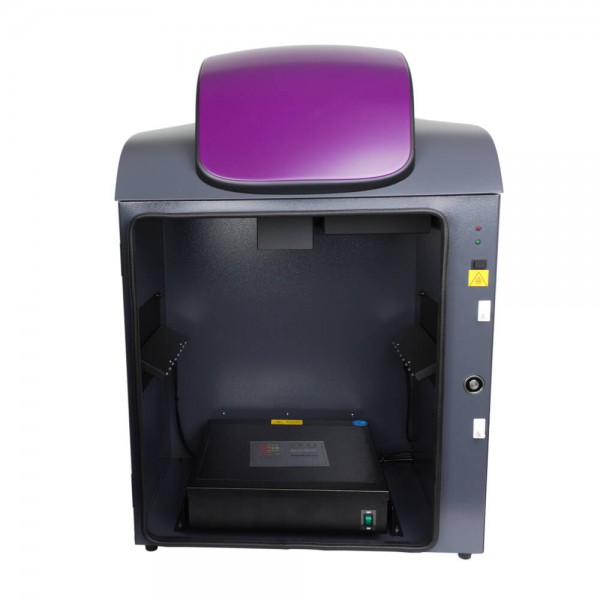

Spacious darkroom – view up to 25x30cm gels
5m pixel camera
Motor driven zoom lens and filter wheel
White, UV and blue lighting options
genePIX automatic control software
Unlimited copies of geneQUANT analysis software

Overview
Specifications
Video
Documents
Variations
Accessories

Overview

gelPRO has a high resolution 5m pixel camera which is capable of giving outstanding images with incredible spatial resolution. The gelPRO gel documentation system has a stylish modular design and includes a motor driven zoom lens as standard, as well as a motor driven filter wheel. Internal lighting comes from a UV transilluminator or a blue light LED module to further extend the applications possible with the gelPRO. Upgradable to: Chemiluminescence and multiplex imaging

Applications

Affordable system for routine fluorescent and visible gel imaging
High resolution 5MP camera for good spatial resolution
Effective resolution up to 15.1MP
Motor driven lens with feedback
Integral white LED lighting for sample positioning, visible light applications and colorimetric markers
Motor driven 7-position filter wheel with UV filter to extend applications
Automatic or manual control using genePIX
Pre-defined 1-click protocols for rapid imaging
Unlimited user saveable protocols
Use with UV transilluminator for DNA imaging
Use converter screen for visible light applications such as protein
Use with blue LED UltraBright transilluminator for safe-dye applications
Includes unlimited copies of geneQUANT analysis software.
IQ/OQ qualification protocols as available

Specifications

Software
Analysis Software	included geneQUANT
21CFR Compliant	Yes
Advanced Analysis Features	Included
Password Protection	With Windows
Image Storage	TIFF or GLP Compliant Format
Operating System Requirements	Windows
Camera
Camera Type	CCD
Quantum efficiency @ 425nm	52%
Resolution	5 MP, 15.1 MP Effective
Sensor Bit-Depth	12/16 bit
Sensor Dynamic Range	4.8
Lens	Zoom, f1.2 with lens feedback
Darkroom
Construction	Powder Coated Steel
Control Interface	USB to PC
Emission Filters	7 position wheel, UV included
Blue Light	Optional
White Light Table	Optional
Epi White Light	Included
Input Voltage	115/240V
Compliance Marks	CE, 21 CFR Part 11
Transilluminator Size	25 x 30 cm
Transilluminator Wavelength	302nm
Unit Dimensions (cm)	57 x 84 x 45
Weight (Kg)	37
Product Includes	gelPRO Darkroom and camera, UV transilluminator, UV Filter, Power Cable, Software USB and Instruction Manual

Video

Documents

GELPRO.WEB.PDF

GELPRO MANUAL.pdf

Variations

Image	Product Name	Catalog No.	Product Description	Pack Size	Quantity	Action
	Cleaver GelPro Gel Documentation Systems	gelPRO-302	Gel Documentation System for fluorescence and visible applications, with 25x30cm 302nm UV Transilluminator, Includes Acquisition and Analysis Software

Accessories

Cat. No.	Description	Qty/Pack
CS-2020M-E	Transilluminator (20x20cm; 302nm) 230V, 50Hz + runners	Each
CS-2530M-E	Transilluminator (25x30cm; 302nm) 230V, 50Hz + runners	Each
CS-2020LM-E	Transilluminator (20x20cm; 302/365nm) 230V, 50Hz + runners	Each
CS-2530LM-E	Transilluminator (25x30cm; 302/365nm) 230V, 50Hz + runners	Each
GX-VP	Viewing platform	Each
CS-ULTRA-BRIGHT-LED	Blue LED Transilluminator, Viewing area 20x16cm + sliding tray	Each
CS-BLC	UV to Blue light converter, Size 25x30cm suitable for DNA safe dyes	Each
CS-FSG72	Blue light filter	Each
CS-WLC	Visible light converter, Size 30.5x33cm	Each
CS-FSP72	Short pass [515 -599nm] (SW032)	Each
