Premium Biosafety Cabinets - Airscience

  • Airscience Purair BIO comes with basic electronic control system that provides simple and reliable oversight of all cabinet systems.
  • The design is based on a single, energy-efficient EC Brushless DC Motor and air circulation system which manages airflow at all critical
    points including inflow, downflow and exhaust. There is no need for dual motor synchronization, balancing and expense.
  • Front access to both HEPA supply and exhaust filters encourages quick, safe filter removal and replacement by an authorized technician.

Overview

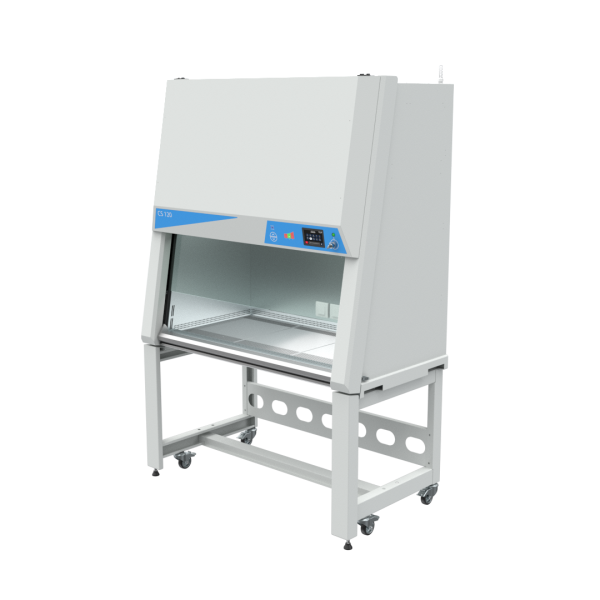

The Purair® BIO biological safety cabinet (BSC) is certified for safety and performance in accordance with NSF/ANSI Standard 49 and EN12469 which certifies Class II, Type A2 biological safety cabinets are suitable for working with biosafety agents at levels 1, 2 and 3. Air Science 4-foot models are certified by NSF.

Main benefits offered by the Air Science biolsafety cabinets include:

  • Single EC Blower Motor Design. The Purair BIO is designed with a single EC blower motor for ease of use, reliability, and to promote low cost of ownership. Dual motor designs can introduce a number of problems, including unbalanced airflow, higher maintenance costs, longer certification processes, and uneven filter loading. Airflow adjustments are simpler, operational costs lower, and maintenance easier for BSCs equipped with single EC blower motors.
  • Flexibility. The Purair BIO includes multiple service connections for maximum flexibility. It includes duplex electrical outlets with splash-proof, UL listed covers. CSA certified service valves for gas, air, and vacuum are also available. Maximum working pressure of 75PSI.
  • Operator Safety. The anti-ultraviolet, 6 mm tempered glass ensures maximum protection for the operator.
  • Ergonomic Design. The user interface combines ergonomics, safety, and aesthetics with a 10° angled window design that reduces operator head and elbow discomfort, as well as eye strain and fatigue.

Specifications

Filtration AS-AHA-103-CB-B AS-AHA-133-CB-A AS-AHA-133-CB-B AS-AHA-163-CB-B AS-AHA-193-CB-B
Airflow <… 70% recirculated / 30% exhausted …>
Average Inflow Velocity <… 100 fpm (0.51 m/s) …>
Average Downflow Velocity 64 fpm (0.325 m/s) 60 fpm (0.30 m/s) 60 fpm (0.30 m/s) 60 fpm (0.30 m/s) 60 fpm (0.30 m/s)
Exhaust Air Volume with Exhaust Canopy 353 cfm (10 m3) 459 cfm (13 m3) 388 cfm (11 m3) 565 cfm (16 m3) 671 cfm (19 m3)
Supply HEPA Filter <… (1) 99.99% @0.3 microns (Class H14) …>
Exhaust HEPA Filter <… (1) 99.99% @0.3 microns (Class H14) …>
Construction
Room Height 89.4" / 227 cm 89.4" / 227 cm 89.4" / 227 cm 89.4" / 227 cm 89.4" / 227 cm
Construction <… SUS#304; 6 mm tempered window glass …>
Window Operation 9.8" / 25 cm 9.8" / 25 cm 7.9" / 20 cm 9.8" / 25 cm 9.8" / 25 cm
Blower <… EC brushless DC Motor …>
Electrical Switches <… Membrane push switches; On/Off …>
Electrical Outlets (2) Electrical outlets
(CE certified)
(2) Duplex electrical outlets with splash-proof cover
(UL listed)
(2) Electrical outlets
(CE certified)
(2) Electrical outlets
(CE certified)
(2) Electrical outlets
(CE certified)
Electrical 230V, 50Hz, 10A
Efficiency
Power Consumption 220 watt 300 watt 230 watt 400 watt 490 watt
Fluorescent Intensity lux <… > 1,000 …>
Fluorescent Lamp (2) T5, 21 watt (2) T5, 28 watt (2) T5, 28 watt (2) T5, 35 watt (2) T5, 35 watt

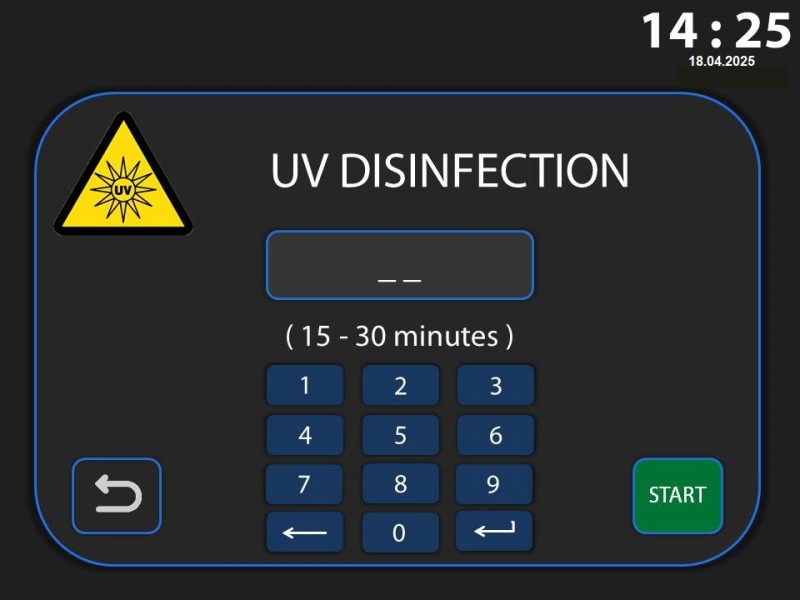

UV Lamp (1) FL 20 watt (1) FL 30 watt, 254 nm (1) FL 30 watt, 254 nm (1) FL 40 watt, 254 nm (2) FL 20 watt, 254 nm
Noise, dBA < 58 < 63 < 57 < 60 < 62
