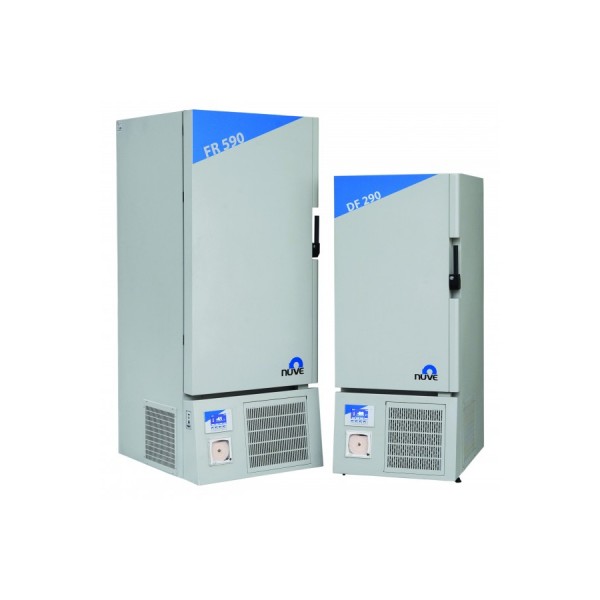

-86 Ultra Low Temp Freezers NUVE

  • Available in three different capacities: 261, 461, 560 liters
  • DirectFREEZE™: Faster and homogenous freezing through the coils located inside the shelves
  • Powerful and reliable N-Smart™ microprocessor control system.
  • Possibility of sending e-mails in case of any failure.
  • Equipped with NuveCom™ communication unit.
  • Minimized air exchange on opening reduces ice build-up and protects samples.

Overview

The ultimate protection for your samples is ensured by placing the cooling coils inside the shelves to provide the most efficient heat extraction. No reliance on air convection to transfer energy to the walls of the freezer but transfer by conduction with DirectFREEZE™.

When the DF series are used according to instructions, occasionally wiping away the ‘snow’, no ice will form on the door, maintaining efficient cooling.

The chamber of the DF series is designed around the sizes of the most commonly used cryoboxes that account for over 80% of all usage. This means that the maximum numbers of samples are stored in the minimum footprint.

The DF series Ultra Low Temperature Freezers are powered by N-SmArt™ which has internal memory storing temperatures records up to ten years with one hour intervals as digitally and graphically. By means of NuveCloser™ software, The DF series can be controlled via internet. Sample safety is given top priority with audible and visual alarm system and optional NuveWarn™ remote alarm system, plus an optional AlerText™ text message to multiple mobile phones. Sending e-mail up to five e-mail addresses in case of any failure is offered as standard Alarms are independently powered by a permanently recharged battery. The units can be placed in corridors as the door, power switch and optional chart recorder are all key lock protected.

  • Maximum information with highly visible 4,3’’ colorful LCD display
  • Massive data storage with internal memory that stores the records up to ten years with one hour intervals as digitally and graphically
  • Ethernet port for remote access through internet
  • Optional NuveCloser™ software to access the operating parameters, failure history, memory and other technical parameters
  • Four independent compartments with insulated doors for decreasing air entry
  • Compartment dimensions match commonly used cryoboxes
  • Washable air filter for simple maintenance and top performance
  • Perfect air tightness with soft gasket
  • Heated contact surface of gasket to virtually eliminate icing-up.
  • Chamber made of stainless steel for longer life and shelves made of aluminum for faster heat transfer
  • Epoxy-polyester powder coated stainless steel outer body
  • Foamed-in-place high density polyurethane insulation
  • Door handle with key lock
  • Key operated mains power switch to protect your samples
  • Audible and visual alarm system
  • Alarm system fed by a permanently recharged battery
  • Display of actual temperature even at power failure
  • Standard remote and central alarm ports
  • Optional battery-operated 7- day chart recorder
  • Optional AlerText™ SMS alarm system for ultimate security
  • Optional NuveWarn™ remote alarm system
  • Optional CO2 back-up system to extend protection in case of failure
  • Equipped with Wi-Fi connection for N-Mobile™

Specifications

Model Nos.

DF 290

DF 490

DF 590

Capacity (lt.)

261

461

560

Minimum Temperature

-86 °C*

Control System

Programmable Microprocessor N-Smart™

Data Memory

10 years

Safety System

Lockable ON-OFF Switch

Temperature Display

4,3” Colourful TFT LCD display (Unaffected by power failure)

Temperature Set Range

-45/-90°C

Temperature Limit

-55 / -86°C

Temperature Reading and Setting Sensitivity

1°C

Temperature Sensor

PT -100

Cooling System

DirectFREEZE™ direct cooling

Temperature Alarm Range

Set Point +5°C/+25°C

Power Failure Alarm

Audible and visual

Door Open Alarm

Audible and visual

Alarm Feeding System

12 hour battery with automatic charging

Independent Cell / Inner insulation door (pcs)

3/3

4/4

4/4

Noise Level

<65 dB

Isolation ( CFC free)

High density injected polyurethane (130 mm)

Gasket Structure

Heated sealing surface

Refrigerant gas

R507a-R 508b

Circular temperature recorder

Optional

Central Alarm Output

Standard

Remote Alarm Output

Standard

Internal Surface Material

Stainless Steel

External Surface Material

Electrostatic powder coated stainless steel sheet

Wheel System

4 wheel, 2 fixation foot

Power Supply

1600

Power Ratings

230 V - 50 Hz

Internal Dimensions (W x D x H)

420 x 630 x 995

555 x 630 x 1320

555 x 770 x 1320

External Dimensions (W x D x H)

680 x 975 x 1715

820 x 975 x 2035

820 x 1120 x 2035

Video

Variations

Image Product Name Catalog No. Product Description Pack Size Quantity Action

Accessories

FACTORY FITTED OPTIONS





DF XXX Y

Weekly temperature chart recorder 0ºC / -100ºC

Each

OPTIONS



Each

A 08 191

AlerText™ GSM alarm module

Each

K 13 009

NuveWarn™ remote alarm system with 10 m cable

Each

A 08 195

NuveCloser™ software for PC (operates through internet)

Each

A 08 231

NuveCloser™ multi software (connection up to 15 devices)

Each

ACCESSORIES



Each

A 08 135

CO2 back up unit

Each

A 08 138

PP Cryobox 52X133X133 mm capacity 9x9 tubes

Each

A 08 165

PP Cryobox 75X133X133 mm capacity 9x9 tubes

Each

A 08 171

Cryobox 137x137x50 mm

Each

A 08 172

10x10 Divider for up to Ø 12 mm tubes. Divider height: 30 mm

Each

A 08 173

9x9 Divider for up to Ø 13,6 mm tubes. Divider height: 30 mm

Each

A 08 160

Diagram paper for chart recorder 0ºC / -100ºC (Pack of 100)

Each

A 08 070

Spare pen for chart recorder

Each
