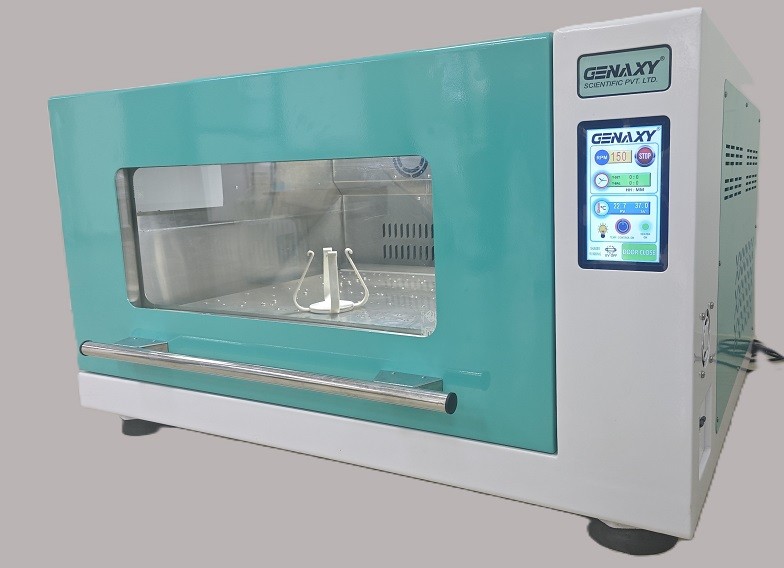

NEX-GEN Shaking Incubator (Refrigerated)

  • Stackable up to 3 unit.
  • Speed range from 0 to 300 RPM.
  • Temperature Range of 10 to 60 °C.
  • Chamber Capacity of 250 L.
  • Platform size of 800 x 550 mm.
  • Availability of clamps and sticky mats for flexibility of use.
  • ISO & CE Certified.

Overview

The GENAXY NEX-GEN series Refrigerated shaking incubators can be stacked up to three units high, providing laboratory professionals tripled culture capacity, while still only occupying the same “footprint” of a single shaker. All models feature an insulated, foldable door to save space unlike the conventional front opening that needs space while opening the door. Equipped with double-layer glass window for high visibility.

Easy operation using the switches for temperature and shaking on/off features, LED light indicators for heating and cooling temperature, easy touch pad for speed and temperature settings. Equipped with large LED display for displaying the real time temperature, speed and time.

Specifications

Model

GSI-250L

Capacity

250 Liters

Control

P.I.D Microprocessor

Control Mode

Fix Value

Control Panel

LCD Touch Pad

Air Convection

Forced

Shaking Mode

Orbit

Volume/Compartment (L)

250L

Ambient Temperature (°C)

10-35

Shaking Speed (rpm)

0-300 (250 Recommended with 3 units)

Stroke (mm)

Ø 25 mm.

Temperature Range (°C)

10-60

Temperature Accuracy (°C)

0.5

Temperature Uniformity (°C)

±1°C @ 37°C

Timer

1 to 9999 min.

Inner Chamber

Stainless Steel

Outer Chamber

Stainless Steel

Tray (mm) (WxD)

800 x 550

Inner Dimensions

860x700x420 (mm) (W x D xH)

Exterior Dimensions

1225x875x625 (mm) (W x D x H)

Packing Dimensions

1420x1050x2060 (mm) (W x D x H)

Net/Gross Weight (kg)

150/ 200 Kg.

Power (W)

1500W

Electricity

230V 50Hz

Approval

CE, ISO

Security

Over-temperature Protection, Compressor Overload Protection,

Video

Variations

Image Product Name Catalog No. Product Description Pack Size Quantity Action
Refrigerated Shaking Incubator GSI- 250L

Refrigerated Shaking Incubator 250L, 10 to 60 degrees.

2

Accessories

Product Code

Description

G-Clamp-50ml

Clamp for 50ml Flask, with Spring Retainer

G-Clamp-100ml

Clamp for 100ml Flask, with Spring Retainer

G-Clamp-250ml

Clamp for 250ml Flask, with Spring Retainer

G-Clamp-500ml

Clamp for 500ml Flask, with Spring Retainer

G-Clamp-750ml

Clamp for 750ml Flask, with Spring Retainer

G-Clamp-1000ml

Clamp for 1000ml Flask, with Spring Retainer

G-Clamp-2000ml

Clamp for 2000ml Flask, with Spring Retainer

G-Clamp-96well

Clamp for 96 Well Plate

G-Sticky-Mat

20x20 cm sticky mats.
