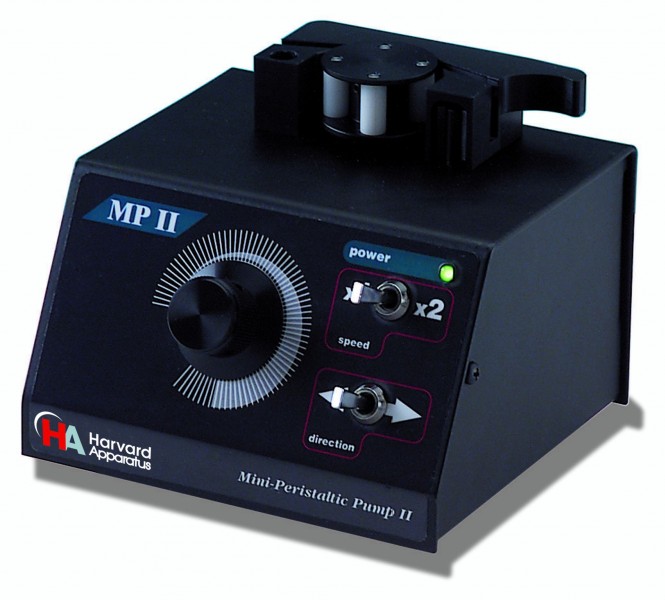

Mini Peristaltic Pump

Easy-to-use, small compact size
Continuous low flow rates
Ideal for slow perfusion studies
Ideal for controlled animal feeding
Pump can take one or two tubes simultaneously
Variable pumping speed
Bi-directional
x1 or x2 speed range selections
Low electrical and mechanical noise
Economical

Overview
Specifications
Video
Documents
Variations
Accessories

Overview

The Mini-Peristaltic Pump can be used with either a single tube or two tubes simultaneously. Two of the Pump Head Tubing Pieces are included with the pump. Additional Pump Head Tubing Pieces may be purchased separately.

Specifications

Output Pressure	In excess of 20 p.s.i.
Power	12 VDC 800 mA, 2.5 mm Connector,
	115/230 VAC, 50/60 Hz,
	Universal power supply, 10 W
Dimensions (H x W x D)	8.9 x 11.4 x 10.2 cm (3.5 x 4.5 x 4 in)
Weight	0.96 kg (2.1 lb)
Tubing ID	1/16"
