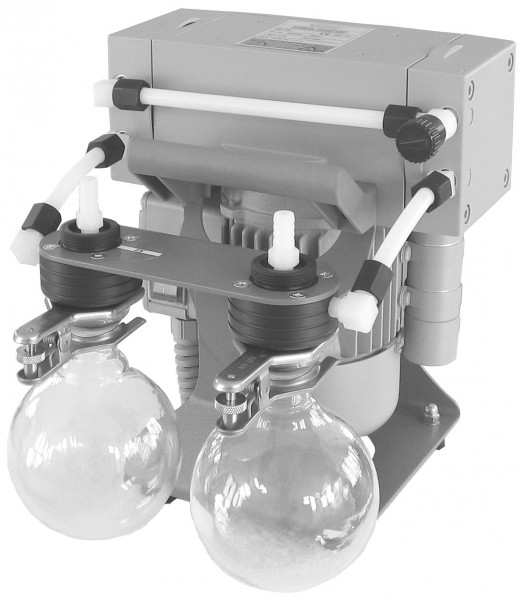

Vacuum Pump

  • The pump is highly resistant to water vapor, acid, and gel staining solution vapors.
  • Two vapor trap flasks capture condensate at both the pump inlet and outlet.
  • Each flask is held in place by a single clamp for quick and easy removal and cleaning.
  • The pump is robust, easy to use, and requires minimal maintenance.

Overview

The VP200 Vacuum Pump is especially well suited to dry gels on the Hoefer GD2000 Vacuum Gel Dryer.

Specifications

Maximum Pumping Speed

120 VAC 60 Hz, 1.2 cfm

230 VAC 50/60 Hz, 1.7/2.0 m3/h

Ultimate (total) Pressure (absolute)

9 mbar

Ultimate (total) Pressure (absolute) with Glass Ballast

20 mbar

Max. Permitted Outlet Pressure (absolute)

2 bar

Motor Power

180 W

Motor Protection

Overload cutout (manual reset)

Rated Current Draw

120 VAC 60 Hz, 2.9 A

230 V ~50/60 Hz, 1.5/1.45 A

Degree of Protection IEC 529

IP 54

 Operating Temperature

0 to 40°C

 Storage Temperature

-10 to 60°C

 Operating Relative Humidity (non-condensing)

30 to 85%

 Sound Pressure Level (enveloping surface method at 1 m)

41 dBA

 Rated Motor Speed at 50/60 Hz

1500/1800 rpm

 Inlet/Outlet Port Hose Nozzle Tubing Size

ID 10 mm, 1/8-27 NPT

 Dimensions (W x H x D)

31 cm x 29.5 cm x 24 cm

 Weight

11.7 kg



Video

Variations

Image Product Name Catalog No. Product Description Pack Size Quantity Action
Vacuum Pump VP200-230V

Vacuum Pump, 230 VAC

1

Accessories

Cat No.

Description

VP200RK-2

Replacement Ballast

VT3

Vacuum Tubing, 8 mm ID, 3 m
