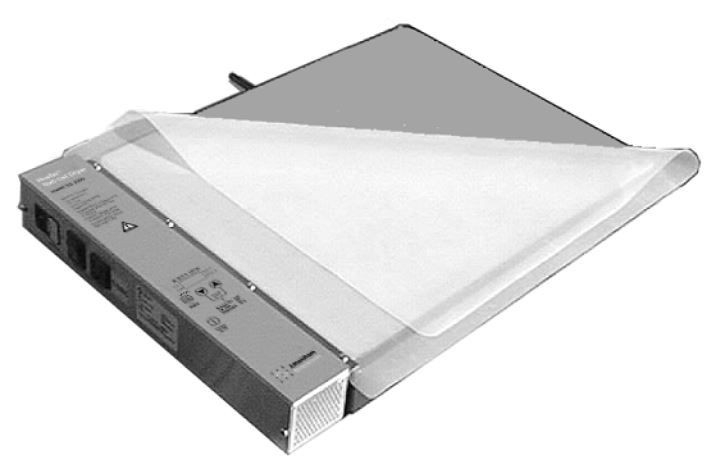

Vacuum Gel-Drying System

  • Dries acrylamide and agarose gels as large as 33 x 44 cm in as little as 30 minutes
  • Heat and vacuum are applied from beneath the gel through a heavy aluminum platen for even heat and vacuum distribution under the gel
  • Independent timers for heat and for vacuum
  • Thermostat adjusts from 40 to 80°C ± 2°C
  • A quiet, oil-free diaphragm pump maintains the low vacuum necessary for rapid gel drying

Overview

The GD2000 Vacuum Gel-Drying System uses a dry-heat vacuum method to dry acrylamide and agarose gels rapidly, evenly, and safely.

Specifications

Maximum Operating Ranges

    Heater

 800 W, thermostatically controlled

    Independent Pump Outlet

 575 W

 Power Requirements

 115 VAC, 50/60 Hz or 230 VAC, 50/60 Hz

 Environmental Operating Conditions

     Indoor Use

 15 to 40°C

     Humidity

 Up to 80% for 15 to 31°C, decreasing linearity to 50% for 31 to 40°C

    Unit Dimensions (W x H x D)

 55.0 x 8.5 x 43.5 cm

Video

Variations

Image Product Name Catalog No. Product Description Pack Size Quantity Action
Vacuum Gel-Drying System GD2000-230V

Vacuum Gel-Drying System, 230 VAC

1

Accessories

Cat No.

Description

SE1141

Filter Paper, 35 x 44 cm, 25 sheets

SE1142

Porous Cellophane for GD2000 (35 x 44 cm), 50 sheets

SE1143

Clear Silicone Rubber Overlay Sheet

SE1145

Porous Polyethylene Cover Sheet

SE1146

Stainless Steel Screen

VT3

Vacuum Tubing, 8 mm ID, 3 m
