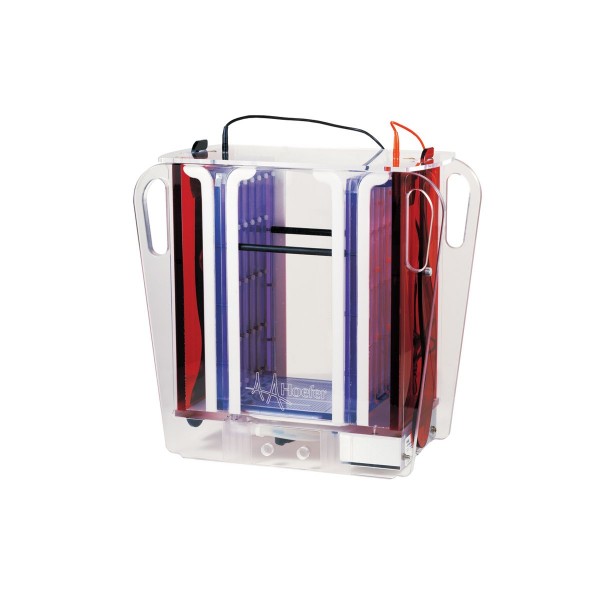

SE900 Gel Protein Electrophoresis Unit

  • No upper buffer chamber—no gasket issues and no risk of buffer loss
  • Utilizes minimal parts—easy to use and reliable
  • External cooling and internal buffer circulation—ensures an even,constant, and uniform temperature for reproducible results
  • Up to six 28 cm plates can be run at one time—perfect for high throughput applications
  • Glass plate sandwiches are hinged cassettes—allows for rapid and easy assembly before use
  • Built-in draining port—avoids lifting of a heavy buffer-filled tank
  • Assembly of the tank is easy—no clamps needed Innovative design enables re-use of tank buffer
  • Innovative design enables re-use of tank buffer—decreased buffer consumption for reduced cost

Overview

The SE900 was designed as a dedicated unit for second dimension electrophoretic separation. It can accommodate up to six 28 cm SDS-PAGE gels. If desired, the unit will accommodate plates of similar size made by other manufacturers.

Specifications

Gel Plate Size

28 x 21 cm (W x H)

Gel Size

 25 x 20 cm (W x H)

Maximum Power Settings

600 V, 1000 mA, 150 W

Maximum Temperature

45°C

Humidity

Up to 80%

Unit Dimensions (W x H x D)

43 x 43 x 20 cm

Rating

100 to 240 V, 50 to 60 Hz, 2A

Buffer Pump

50,000 hour pump life

Weight

13.6 kg

Video

Variations

Image Product Name Catalog No. Product Description Pack Size Quantity Action
Large Format Vertical Gel Protein Electrophoresis Unit SE900

Large format PAGE system, separation tank only Includes tank, lid, gel rack For Gel size 28 x 21 cm

1
Large Format Vertical Gel Protein Electrophoresis Unit SE900-1.0

Large format PAGE system complete Including six (6) 28 cm x 21cm hinged glass cassette and one (1) large format gel caster with accessories

1

Accessories

Catalogue No.

Description

Qty

SE9102-1-1.0

Hinged Glass Cassette, 28 x 21 cm, 1 mm thick

Each

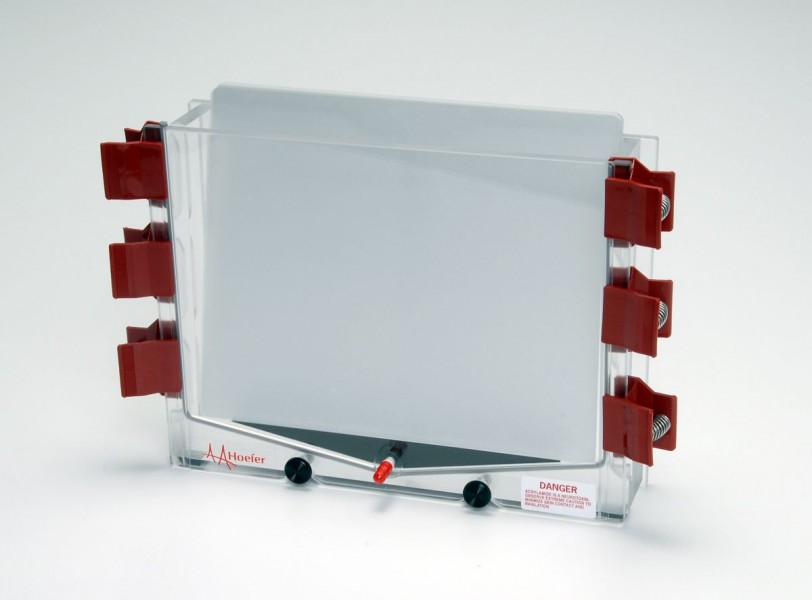

SE915

Large Format PAGE Multiple Gel Caster for Use with SE9102 Cassettes

Each

SE252

Asymetrical Spring Clamps

Each

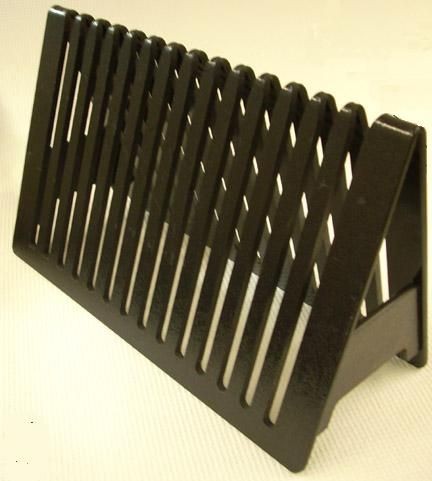

SE914

Gel Plate Rack, for Holding up to 14 Large Format Gel Cassettes

Each

SE908

Tubing Kit

Each

SE6056-HV

High Voltage Leads

2 Pcs

PS12-25

Replacement Power Pack for Buffer Pump

Each

SE9056

Replacement Lid with High Voltage Leads

Each

SE9054

Internal PAGE Rack

Each

SE9150

Lower Buffer Chamber (tank) with pump assembly

Each

SE917

Drain Filters

Each

SE1514

Wonder Wedge Plate Separation Tool

Each

SE913

Separator Sheets

Each

SE912

Space Saver Plate

Each

SE6070

Gel Seal-1/4 oz.

Each
