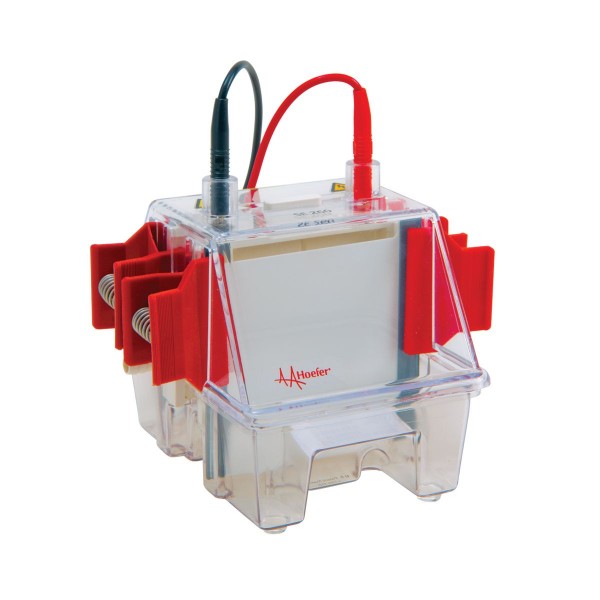

SE260 Mighty Small II Deluxe Vertical Unit

  • Maximum glass plate size 10 x 10.5 cm
  • Flexible design, additionally able to accommodate 10 x 8 cm format with optional accessories
  • Supports a wide variety of precast gels
  • Efficient active cooling ensures sharp bands
  • Run up to two gels (maximum 30 samples) at one time under identical conditions
  • Quick and easy to assemble
  • Choose from a wide variety of accessories

Overview

The SE260 Mighty Small II Deluxe Mini Vertical Protein Electrophoresis Unit combines the advantages of small format and efficient cooling for rapid electrophoretic screening of proteins and nucleic acids.

Specifications

Glass Plate Size (W x H)

10 x 10.5 cm or 10 x 8 cm

Spacers

0.75 mm, 1.0 mm, 1.5 mm

Maximum Power Settings

500 V, 500 mA, 12 W

Maximum Temperature

45°C

Indoor Use

4 to 40°C

Humidity

Up to 80%

Unit Dimensions (W x H x D)

16.5 x 18 x 16 cm

Video

Variations

Image Product Name Catalog No. Product Description Pack Size Quantity Action
Mighty Small II Deluxe Mini Vertical Protein Electrophoresis Unit SE260-10A-.75

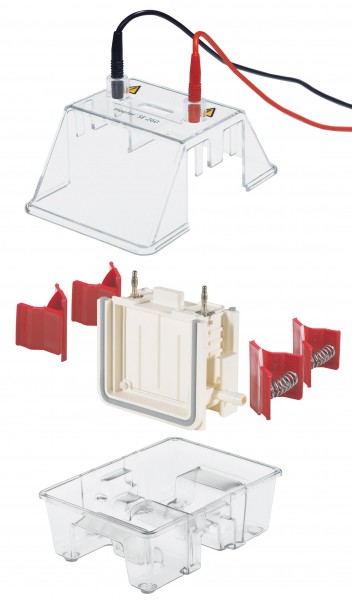

Lower Buffer Chamber, Upper Buffer 10 x 10.5 cm / Chamber / Cooling CoreSafety Lid with 10 x 8 cm High Voltage Leads, Casting Cradle w/Sealing Gasket Set, Casting Clamp Assemblies-2pcs Cams-4 pcs,Glass Plates, Rectangular, 10x10.5 cm-10 pcs, Alumina Plates, Notched, 10x10.5 cm-5 pcs, Spring Clamps, Red - 4 pcs, Combs, 10-well – 2 pcs, T-Spacers, 0.75-mm thick-4 pcs, Well-Locating Decals-2 pcs, Gel Seal

 1

Accessories

Catalog No.

Description

Qty/Pack

SE212

Well-locating Decal

Each

QFX3/8

Quickfit Male Connector, 3/8”

Each

SE256

Lid W/cables For SE 250/260.

Each

SE6056-HV

HIGH Voltage LEAD SET

Each

SE252

Long Red Spring clamp

Each

SE254B

Upper Buffer Chamber cooling core (Includes foam gaskets)

Each

SE208

Foam Gasket, 61cm X 4.5mm

Each

SE255D

Lower Buffer Chamber for SE260

Each

SE275

4-place Caster For SE250 Gels

Each

SE215

10-place Caster For SE250 Gels

Each

SE245

Mighty Small Dual Gel Caster for gel size 10 x 10.5 cm and 10 x 8 cm

Each

SE202GN-5

Notched Glass Plate, 10x8cm

Each

SE202P-10

Rectangular glass Plates 10x8cm

Each

SE262GN-5

Notched Glass Plats 10x10.5cm

Each

SE262P-5

Rect. Glass Plates 10x10.5cm

Each

SE202N

Notched Alumina Plate, 10 X 8 Cm

Each

SE202N-10

Notched Alumina Plates, 10 X 8 Cm

Each

SE262N-5

Notched Alumina Plates 10x10.5cm

Each

SER11

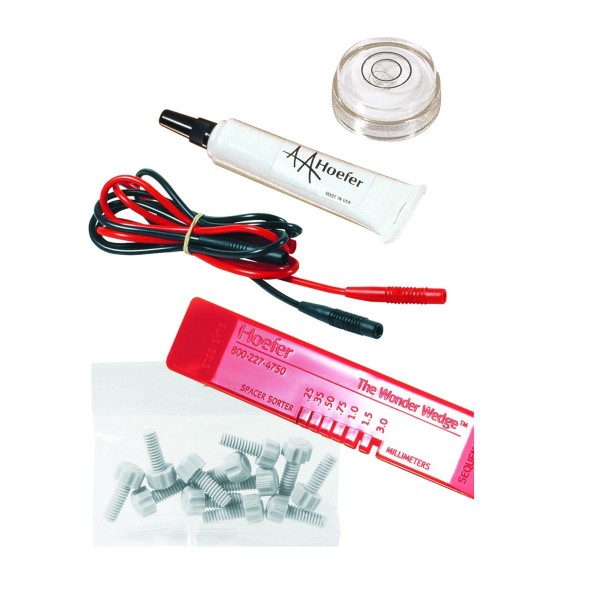

Bubble Level

Each

SE6070

Gelseal 1/4 Oz Tube

Each

SE1514

“Wonder Wedge” (Plate separation tool)

Each

SE211A-5-.75

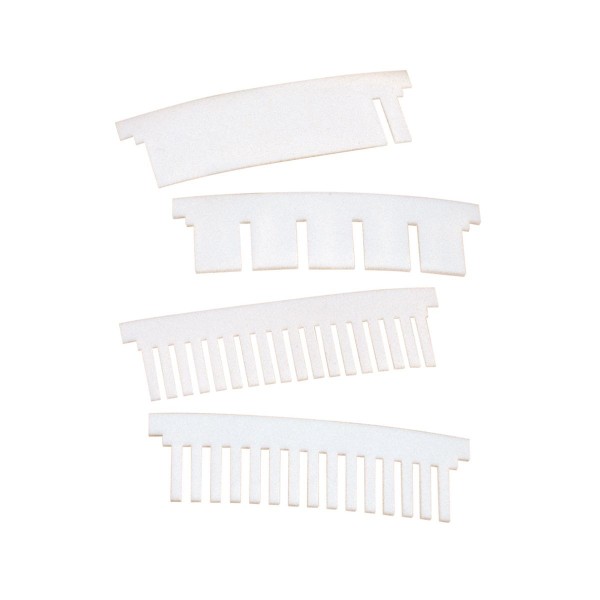

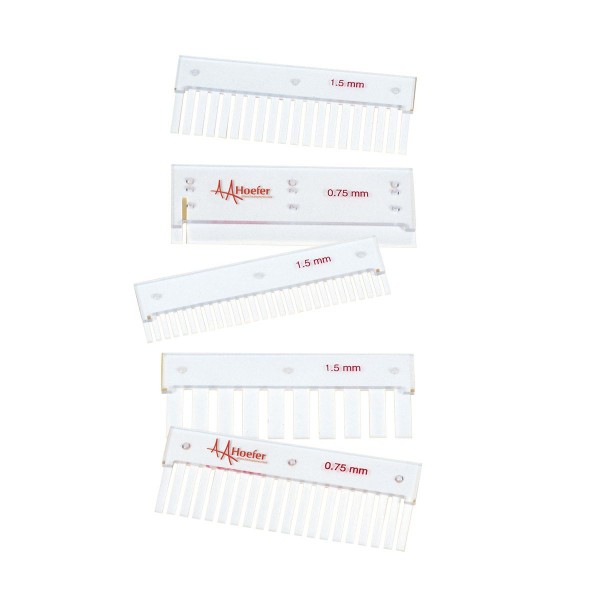

Comb, Spineless, 5 Well, 0.75mm

Each

SE211A-5-1.0

Comb, Spineless, 5 Well, 1.0mm

Each

SE211A-5-1.5

Comb, Spineless,5 Well,1.5mm

Each

SE211A-9-1.0

microtiter comb,9 well,1.0 mm

Each

SE211A-10-.75

Comb, Spineless, 10 Well, 0 .75 mm

Each

SE211A-10-1.0

Comb, Spineless, 10 Well, 1.0mm

Each

SE211A-10-1.5

Comb, Spineless, 10 Well, 1.5 mm

Each

SE211A-15-.75

Comb, Spineless,15 Well, 0.75

Each

SE211A-15-1.0

Comb, Spineless, 15 Well,1.0mm

Each

SE211A-15-1.5

Comb, Spineless, 15 Well, 1.5

Each

SE211A-18-1.0

Microtiter Comb,18 Well,1.0 Mm

Each

SE211A-R-.75

Comb, Spineless Reference, 0.75

Each

SE211A-R-1.0

Comb,spineless Reference,1.0mm

Each

SE211A-R-1.5

Comb, Spineless Reference, 1.5

Each

SE2119T-2-.75

T Spacers 8cm x 0.75mm x 1cm (L x T x W)

Each

SE2119T-2-1.0

T Spacers 8cm x 1mm x 1cm (L x T x W)

Each

SE2119T-2-1.5

T Spacers 8cm x 1.5mm x 1cm (L x T x W)

Each

SE2619T-2-1.0

T Spacers PVC White 10.5cm x 1mm x 1cm (L x T x W)

Each

SE2619T-2-1.5

T Spacer PVC Gray 10.5cm x 1.5mm x 1cm (L x T x W)

Each
