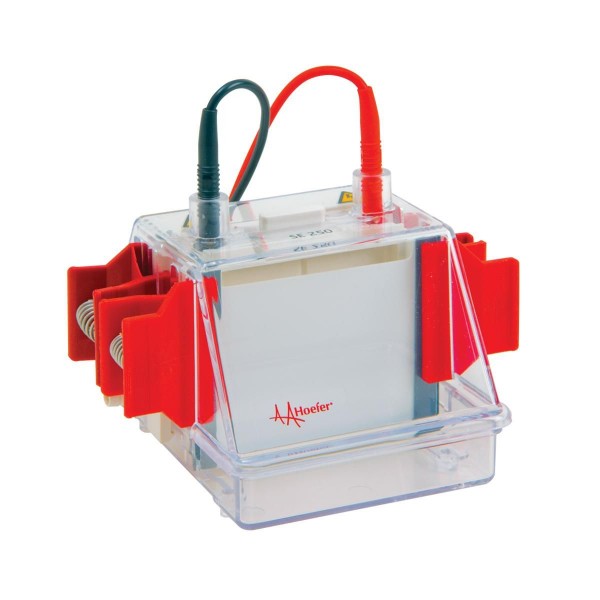

SE250 Mighty Small II Mini Vertical Unit

  • Maximum glass plate size 10 x 8 cm
  • Efficient active cooling ensures sharp bands
  • Quick and easy to assemble
  • Requires minimal buffer
  • Easily upgradable to the SE260 (with optional accessories) resulting in the additional capability of accommodating both 10 x 8 and 10 x 10.5 cm gels, enabling a wider variety of precast gel options
  • Choose from a wide variety of accessories

Overview

The SE250 Mighty Small II Mini Vertical Protein Electrophoresis Unit is designed for quick screening and rapid electrophoretic separation.

Specifications

Glass Plate Size (W x H)

10 x 8 cm

Spacers

0.75 mm, 1.0 mm, 1.5 mm

Maximum Power Settings

500 V, 500 mA, 12 W

Maximum Temperature

45°C

Indoor Use

4 to 40°C

Humidity

Up to 80%

Unit Dimension (W x H x D)

16.5 x 16 x 16 cm

Video

Variations

Image Product Name Catalog No. Product Description Pack Size Quantity Action
Mighty Small II Mini Vertical Protein Electrophoresis Unit SE250-10A-.75

Lower Buffer Chamber, Upper Buffer 10 x 10.5 cm / Chamber / Cooling CoreSafety Lid with 10 x 8 cm High Voltage Leads, Casting Cradle w/Sealing Gasket Set, Casting Clamp Assemblies-2pcs Cams-4 pcs,Glass Plates, Rectangular, 10x10.5 cm-10 pcs, Alumina Plates, Notched, 10x10.5 cm-5 pcs, Spring Clamps,
Red - 4 pcs, Combs, 10-well – 2 pcs, T-Spacers, 0.75-mm thick-4 pcs, Well-Locating Decals-2 pcs, Gel Seal

 1

Accessories

Catalog No.

Description

Qty/Pack

SE212

Well-locating Decal

Each

QFX3/8

Quickfit Male Connector, 3/8”

Each

SE256

Lid W/cables For SE 250/260.

Each

SE6056-HV

HIGH Voltage LEAD SET

Each

SE252

Long Red Spring clamp

Each

SE254B

Upper Buffer Chamber cooling core (Includes foam gaskets)

Each

SE208

Foam Gasket, 61cm X 4.5mm

Each

SE255D

Lower Buffer Chamber for SE260

Each

SE275

4-place Caster For SE250 Gels

Each

SE215

10-place Caster For SE250 Gels

Each

SE245

Mighty Small Dual Gel Caster for gel size 10 x 10.5 cm and 10 x 8 cm

Each

SE202GN-5

Notched Glass Plate, 10x8cm

Each

SE202P-10

Rectangular glass Plates 10x8cm

Each

SE262GN-5

Notched Glass Plats 10x10.5cm

Each

SE262P-5

Rect. Glass Plates 10x10.5cm

Each

SE202N

Notched Alumina Plate, 10 X 8 Cm

Each

SE202N-10

Notched Alumina Plates, 10 X 8 Cm

Each

SE262N-5

Notched Alumina Plates 10x10.5cm

Each

SER11

Bubble Level

Each

SE6070

Gelseal 1/4 Oz Tube

Each

SE1514

“Wonder Wedge” (Plate separation tool)

Each

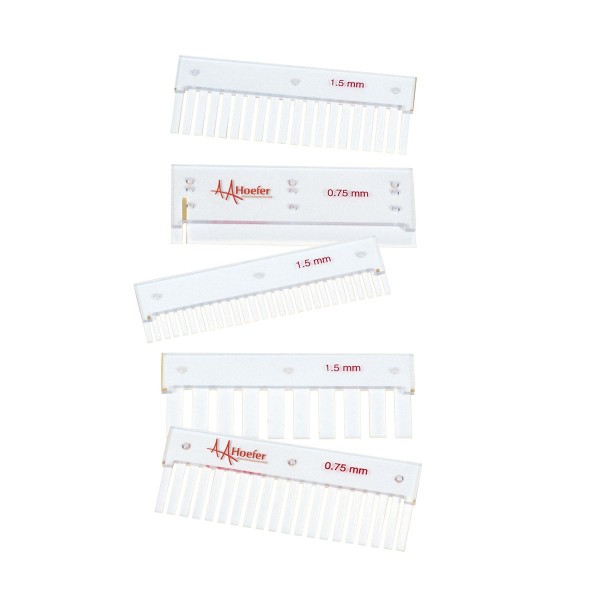

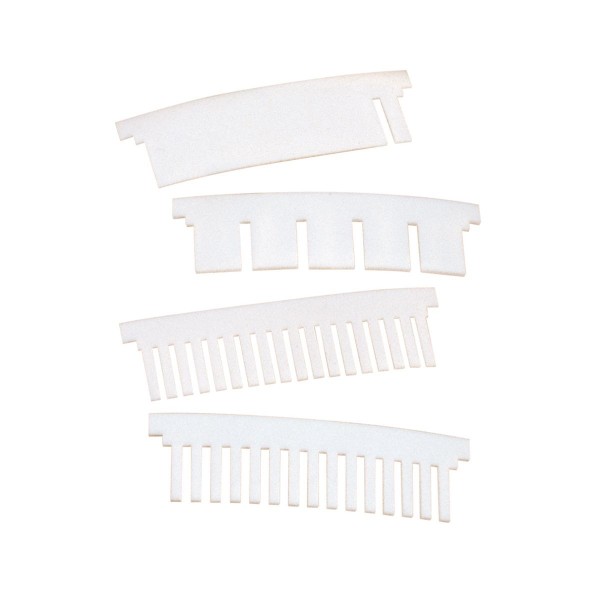

SE211A-5-.75

Comb, Spineless, 5 Well, 0.75mm

Each

SE211A-5-1.0

Comb, Spineless, 5 Well, 1.0mm

Each

SE211A-5-1.5

Comb, Spineless,5 Well,1.5mm

Each

SE211A-9-1.0

microtiter comb,9 well,1.0 mm

Each

SE211A-10-.75

Comb, Spineless, 10 Well, 0 .75 mm

Each

SE211A-10-1.0

Comb, Spineless, 10 Well, 1.0mm

Each

SE211A-10-1.5

Comb, Spineless, 10 Well, 1.5 mm

Each

SE211A-15-.75

Comb, Spineless,15 Well, 0.75

Each

SE211A-15-1.0

Comb, Spineless, 15 Well,1.0mm

Each

SE211A-15-1.5

Comb, Spineless, 15 Well, 1.5

Each

SE211A-18-1.0

Microtiter Comb,18 Well,1.0 Mm

Each

SE211A-R-.75

Comb, Spineless Reference, 0.75

Each

SE211A-R-1.0

Comb,spineless Reference,1.0mm

Each

SE211A-R-1.5

Comb, Spineless Reference, 1.5

Each

SE2119T-2-.75

T Spacers 8cm x 0.75mm x 1cm (L x T x W)

Each

SE2119T-2-1.0

T Spacers 8cm x 1mm x 1cm (L x T x W)

Each

SE2119T-2-1.5

T Spacers 8cm x 1.5mm x 1cm (L x T x W)

Each

SE2619T-2-1.0

T Spacers PVC White 10.5cm x 1mm x 1cm (L x T x W)

Each

SE2619T-2-1.5

T Spacer PVC Gray 10.5cm x 1.5mm x 1cm (L x T x W)

Each
