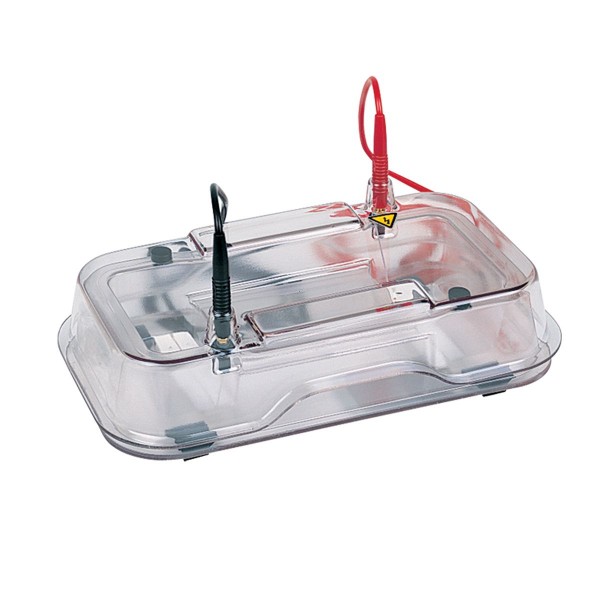

HE33 Mini Horizontal Agarose Electrophoresis

Fast separations—run a 7 x 10 cm gel in as little as 5 minutes
UV transparent running tray—allows the user to image the gel without risk of damage due to handling
Variety of comb sizes—enables customization of sample throughput to fit your laboratory'srequirements
Adjustable comb height—completec ontrol over well depth

Overview
Specifications
Video
Documents
Variations
Accessories

Overview

The HE33 Mini Horizontal Agarose Unit is designed for very fast separations of DNA restriction fragments in agarose gels. To achieve passive cooling, you simply fill the clear molded base with 50% ethylene glycol coolant solution, seal it, and place it in a freezer or ice bath until ready to use.

Specifications

Gel Dimensions (W x L)	7 x 10 cm
Maximum Buffer Volume	250 ml
Maximum Power Settings	500 V for (5 min or less), 500 mA, 15 W
Maximum Sample Capacity	32
Maximum Temperature	50°C
Indoor Use	4 to 40°C
Humidity	Up to 80%
Unit Dimensions (L x H x W)	24 x 7 x 13 cm

Video

Documents

Variations

Image	Product Name	Catalog No.	Product Description	Pack Size	Quantity	Action

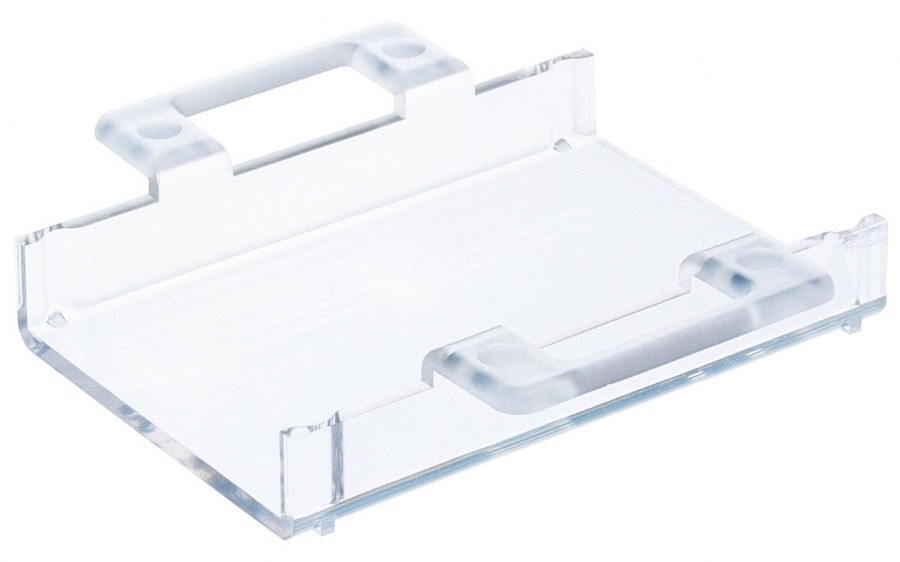

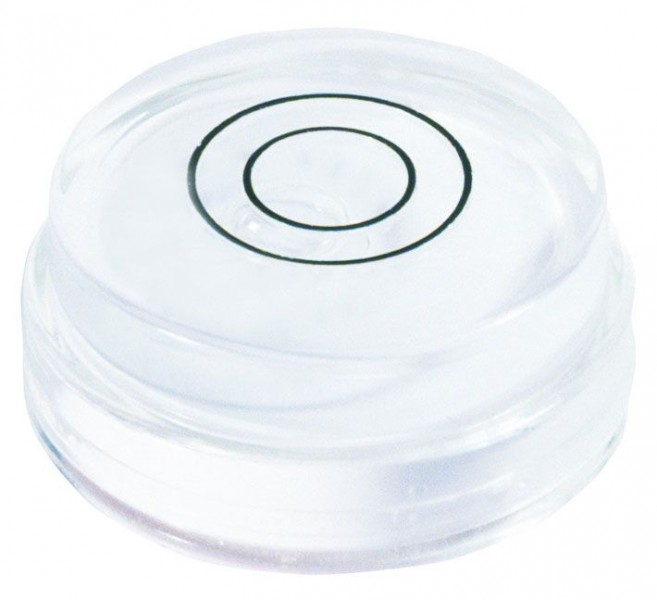

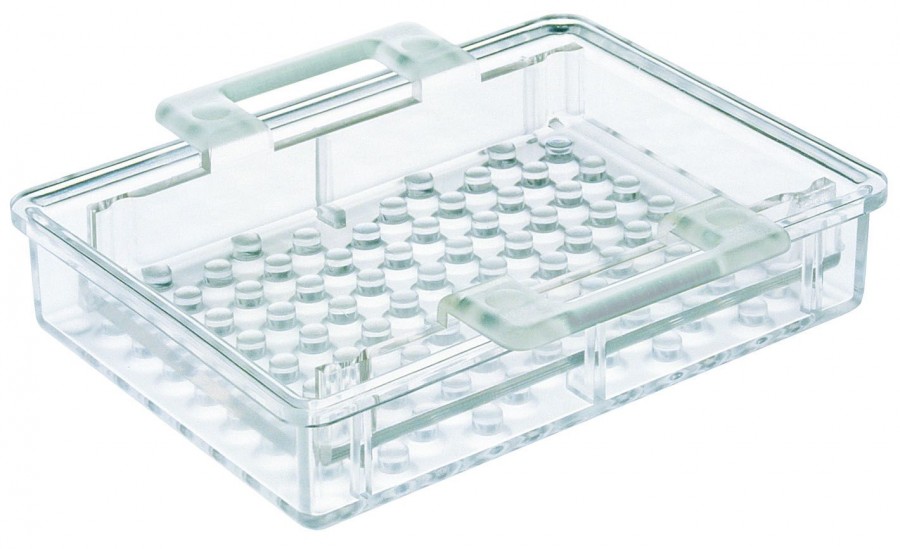

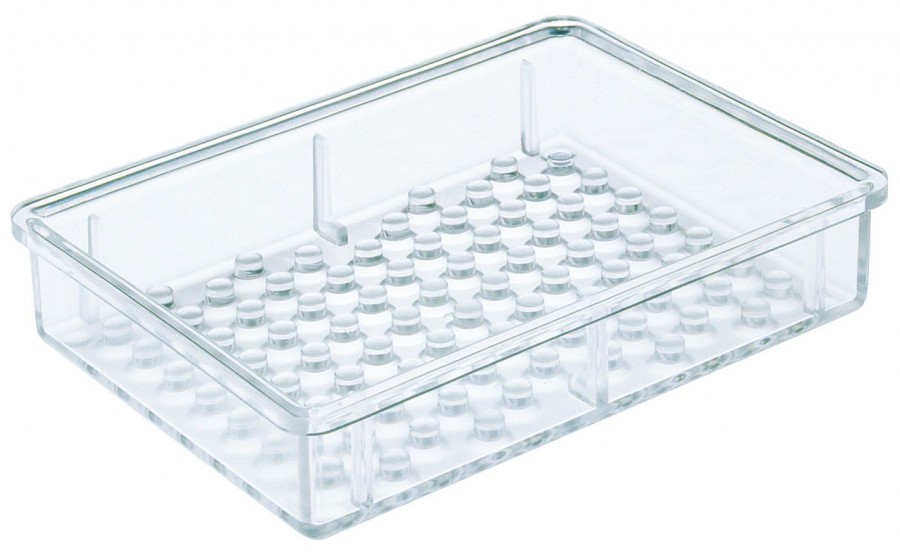

	Mini Horizontal Agarose Electrophoresis Unit	HE33-8-1.5	Mini Horizontal Unit Complete: Includes 7 X10 cm Buffer Chamber Assembly, Safety Lid with High Voltage Leads, Running Tray, Casting Tray, Foam Gaskets 4 Pcs, Bubble Level, Comb 1.5 mm thick, 8 wells, comb and comb back	1

Accessories

Accessories and Replacement Parts
Cat. No.	Description	Qty/Pack
HE30	Buffer Chamber Assembly	Each

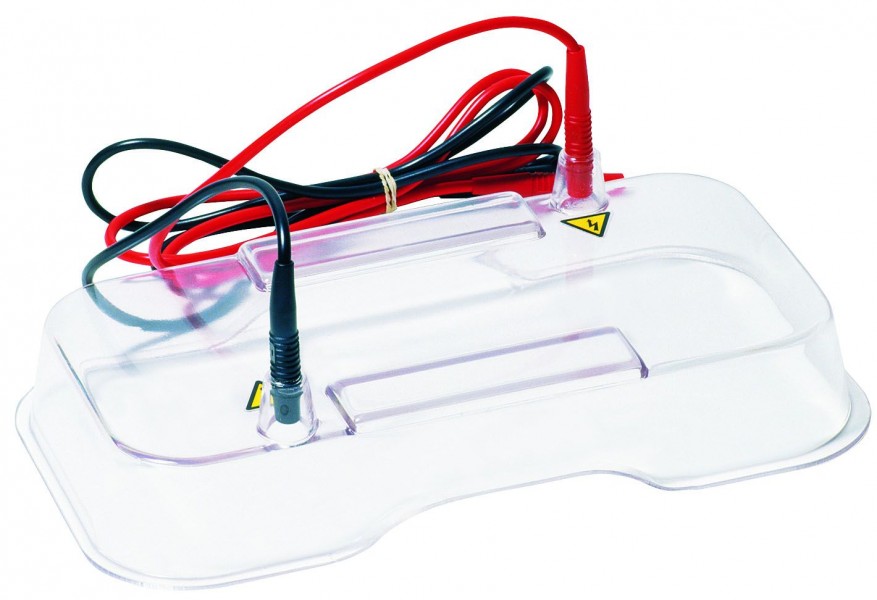

HE36	Lid with leads	Each
HE39	Electrode Replacement Kit	Each
HE47-10	Gel Casting Kit*	Each
HE31A-P-1.0	Comb, Prep, Backless, 1.0mm	Each

Combs
HE31A-P-1.5	Comb, Prep, Backless, 1.5mm	Each
HE31A-8-1.0	Comb, 8 Well, Backless, 1.0mm	Each
HE31A-8-1.5	Comb, 8-well, Backless, 1.5mm	Each
HE31A-12-1.0	Comb, 12 Well, Backless, 1.0mm	Each
HE31A-12-1.5	Comb, 12 Well, Backless, 1.5mm	Each
HE31A-16-1.0	Comb, 16 Well, Backless, 1.0mm	Each
HE31A-16-1.5	Comb, 16 Well, Backless, 1.5mm	Each
HE31-BK	Comb back with 2 screws	Each
