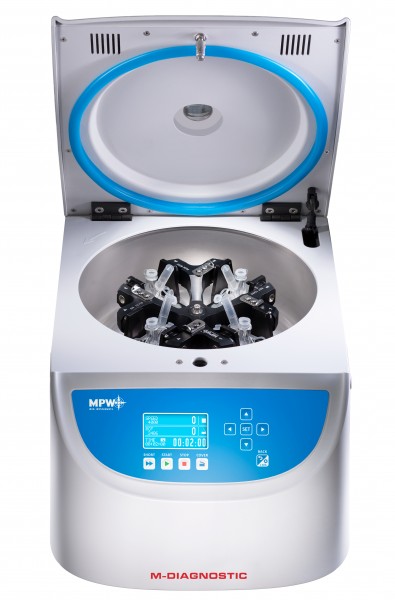

M-DIAGNOSTIC Centrifuge

Speed Range: 90 to 6000 RPM.
Max RCF: 4 830 Xg.
Specifically designed for diagnostic procedures.
Suitable for performing routine tests: complete morphology, biochemistry, coagulation tests, urine, hematocrit, parasitology, hematology, cancer diagnostics (CYTO), semen analysis and more.
ISO/CE/IVD Certified.
Product conforming with the EN-61010-1 and EN-61010-2-020, EN-61010-2-101 standards.

Overview
Specifications
Video
Documents
Variations
Accessories

Overview

MPW M-DIAGNOSTIC - with its wide range of accessories (angle and horizontal rotors) this centrifuge is suitable for performing routine tests: complete morphology, biochemistry, coagulation tests, urine, hematocrit, parasitology, hematology, cancer diagnostics (CYTO), semen analysis and more.

Features:

modern design
low noise level
maintenance-free induction motor
modern software system
large graphic LCD - blanking the screen after a period of inactivity
2 screen modes (simplified and normal)
10 menu languages (PL, EN, ES, IT, PT, DE, RU, FR, SE, CZ)
visual and sound alerts of different notifications
100 user programs
10 acceleration/deceleration curves
speed or RCF adjustment
manual centrifugal radius adjustment (with automatic RCF correction)
time calculation from start key pressing or from reaching preselected speed
ascending or descenging time counting
continuous operation mode – HOLD
SHORT time operation mode
changing of parameters during centrifuging
automatic rotor identification
automatic lid opening
selected functions blocking, password protection
effective ventilation system

Specifications

Technical Specifications	M-DIAGNOSTIC
delayed start function	Yes
Display	large graphic LCD – blanking the screen after a period of inactivity
Capacity	500 ml
Max RCF.	4830 x g
Max RPM	6000
No. of rotors swing/angle	7/9
Automatic Rotor recognition	Yes
User Program	100
“Dimensions (HxWxD)”	300 x 367 x 455mm
Timer	1s to 99h 59min 59s, ∞, step 1s
Weight	22 Kg

Video

Documents

mpw-mu-md-ms-web-en_1.pdf

m-diagnostic_user manual.pdf

Variations

Image	Product Name	Catalog No.	Product Description	Pack Size	Quantity	Action

Accessories

Cat Nos.	Description	Qty/Pack
11501C/A	Angle rotor 30 x 15/10ml, complete with 13080 buckets (O 17x100/120mm) (angle 30°) (max RPM/RCF for MPW-352/R/RH: 5 200rpm/4 021xg, MPW-351e, MPW-260/R/RH, M-DIAGNOSTIC, M-UNIVERSAL: 4 500rpm/3 011xg)	Each
11501C/B	Angle rotor 30 x 10ml, complete with 13081 buckets (O 17x70/85mm) (angle 30°) (max RPM/RCF for MPW-352/R/RH: 5 200rpm/4 021xg, MPW-351e, MPW-260/R/RH, M-DIAGNOSTIC, M-UNIVERSAL: 4 500rpm/2 875xg)	Each
11720C	Angle rotor 4 x 60ml for Orthokine® tubes, complete with buckets 13721 (k?t 45°)(max RPM/RCF: 5 000rpm/3 634xg)	Each
11740C/A	Angle rotor 12 x 15/10ml, complete with buckets 13080 (O 17x100/120mm) (angle 30°) (max RPM/RCF dla MPW-352/R/RH, MPW-260/R/RH, M-DIAGNOSTIC, M-UNIVERSAL: 5 500rpm/4 058xg)	Each
11740C/B	Angle rotor 12 x 10ml, complete with buckets 13081 (O 17x70/85mm) (angle 30°) (max RPM/RCF dla MPW-352/R/RH, MPW-260/R/RH, M-DIAGNOSTIC, M-UNIVERSAL: 5 500rpm/3 686xg)	Each
11741C/A	Angle rotor 8 x 15/10ml, complete with buckets 13080 (O 17x100/120mm) (angle 30°) (max RPM/RCF dla MPW-352/R/RH, MPW-260/R/RH, M-DIAGNOSTIC, M-UNIVERSAL: 6 000rpm/4 226xg)	Each
11741C/B	Angle rotor 8 x 10ml, complete with buckets 13081 (O 17x70/85mm) (angle 30°) (max RPM/RCF dla MPW-352/R/RH, MPW-260/R/RH, M-DIAGNOSTIC, M-UNIVERSAL: 6 000rpm/3 783xg)	Each
11743C	Angle rotor 12 x 30/25ml, complete with buckets 13329 (angle 30°) (max RPM/RCF for MPW-352/R/RH, M-DIAGNOSTIC, M-UNIVERSAL: 5 500rpm/4 058xg, MPW-351e, MPW-260/R/RH: 4 500rpm/2 717xg)	Each
11744C	Angle rotor 10 x 50ml for Falcon® tubes, complete with buckets 13276 (angle 30°) (max RPM/RCF for MPW-260/R/RH, M-DIAGNOSTIC, M-UNIVERSAL: 4 500rpm/2 830xg)	Each
11745C/A	Angle rotor 24 x 15/10ml, complete with buckets 13080 (O 17x100/120mm) (angle 30°) (max RPM/RCF for MPW-260/R/RH, M-DIAGNOSTIC, M-UNIVERSAL: 5 000rpm/3 354xg)	Each
11745C/B	Angle rotor 24 x 10ml, complete with buckets 13081 (O 17x70/85mm) (angle 30°) (max RPM/RCF for MPW-260/R/RH, M-DIAGNOSTIC, M-UNIVERSAL: 5 000rpm/3 130xg)	Each
11746C	Angle rotor 6 x 50ml for Falcon® tubes, complete with buckets 13276 (angle 30°) (max RPM/RCF for MPW-352/R/RH, MPW-260/R/RH, M-DIAGNOSTIC, M-UNIVERSAL: 6 000rpm/4 427xg)	Each
12193C/A	Swing-out rotor 8 x 15/ 10ml, complete with buckets 13080 (O 17x100/120mm) (max RPM/RCF for M-DIAGNOSTIC, M-UNIVERSAL: 4 000rpm/2 504xg)	Each
12193C/B	Swing-out rotor 8 x 10ml, complete with buckets 13081 (O 17x70/85mm) (max RPM/RCF for M-DIAGNOSTIC, M-UNIVERSAL: 4 000rpm/2 504xg)	Each
12200	Swing-out rotor 4 x 100ml (max RPM/RCF: 4 000rpm/2 504xg)	Each
12218C	Microtiter swing-out rotor (max 2 MTP) complete with 2 hangers 13219 (max RPM/RCF dla MPW-260/R/RH, M-DIAGNOSTIC, M-UNIVERSAL: 3 000rpm/916xg)	Each
12452C	Cyto rotor, complete with 4 hangers 13606 (max RPM/RCF dla MPW-352/R/RH, M-DIAGNOSTIC: 2 500rpm/769xg)	Each
