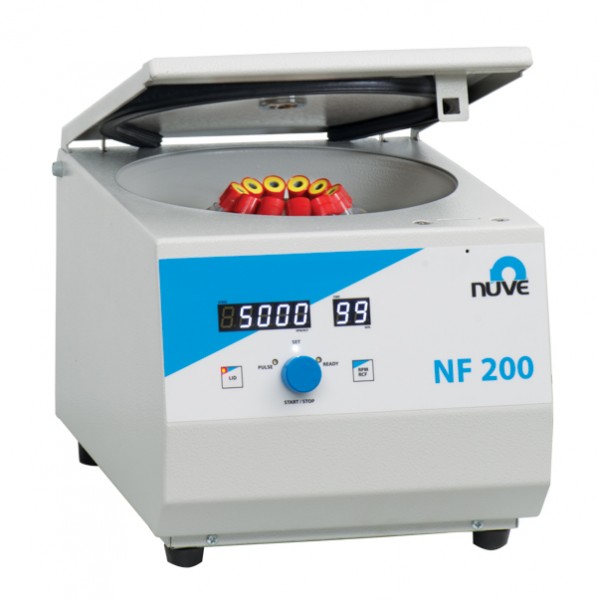

NF 200 Clinical Centrifuge

  • Maximum capacity : 12x15 ml
  • Maximum speed : 5.000 rpm
  • Maximum RCF : 2.822xg.
  • Compact design for separation of blood samples, urine particle sedimentation and other routine applications in emergency and small laboratories

Overview

NF 200 is an ideal centrifuge for small clinics, physicians’ practices and as a point-of-use instrument in larger laboratories. Blood samples, urine sedimentation and general sample preparation are catered for with the standard rotor and adaptors.

The clever airflow path keeps samples from increasing in temperature above required standards. Although compact, NF 200 is robust with its epoxy-polyester powder coated steel body.

Precise control via N-Prime™ microprocessor control system with a key board and large digital display makes NF 200 the instrument of choice when wanting to process a small number of samples.

  • N-Prime™ programmable microprocessor control system for accurate and reliable operations
  • Easy programming with one button, just turn and push
  • Two large LED displays for speed/RCF and time
  • Possibility of programming RCF
  • Pulse key for short centrifugation requirements
  • Reduced temperature increase in the chamber by means of continuous air cooling through air channel in the lid
  • Quite brushless induction drive
  • Safety ensured by steel body, lid and chamber, lid locking system and motor over temperature protection

Specifications

Model

NF 200

Maximum speed

5.000 rpm

Maximum RCF

2.822xg

Tube capacity

12 x 15 ml

Control system

N-Prime™  Programmable Microprocessor Control System

Display

LED Displays for Speed/RCF and timer

Speed set range

1.000-5000 rpm

Speed set step

10 rpm

Timer set range

1-99 minutes + hold position

Timer set step

1 minute

Motor

Maintenance-free Induction Motor

Body, lid and chamber

Electrostatic powder coated steel

Power Supply

230 V / 50 Hz

Power Consumption

150 W

External Dimensions (WxDxH) mm

285x375x260

Packing Dimensions (WxDxH) mm

350x420x480

Net / Packed weight (kg)

12 / 16

Video

Variations

Image Product Name Catalog No. Product Description Pack Size Quantity Action

Accessories

Cat No.

Description

Qty/Pack

G 03 057

1.5/2 ml tubes tube adaptor

Set

G 03 014

7 ml vacuumed/ non vacuumed tubes adaptor

Set

G0 3 015

5 ml vacuumed/ non vacuumed tubes adaptor

Set
